POS-5805DD Portable Mini 58mm Bluetooth Thermal Printer Receipt Bill Ticket POS Printing Description

Features

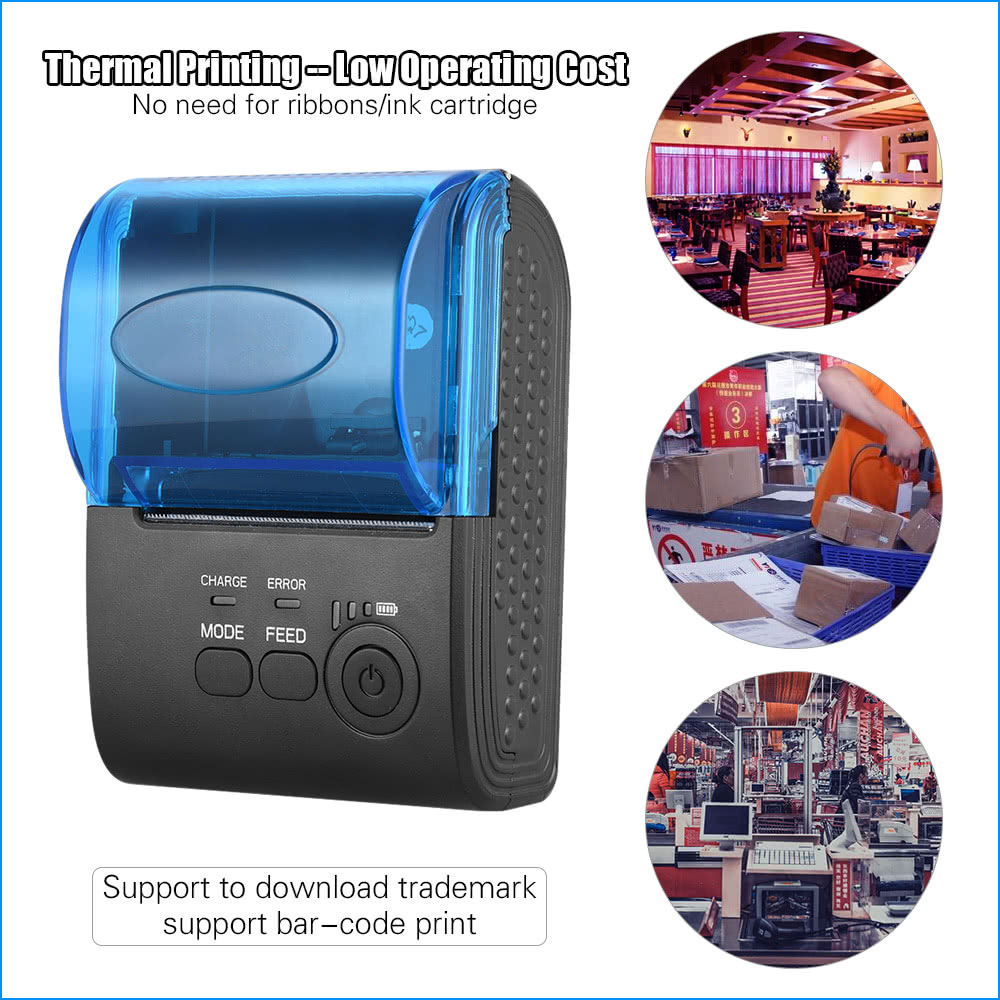

Low cost consumption thermal printer, no need for ink or ribbon. Support bluetooth connection for iOS Android Windows devices. Up to 90mm/s printing speed, with 203dpi resolution for quick & clear printing effect. Print 58mm wide thermal paper, with 100km reliability TPH life. The paper box is transparent, you can check the paper condition without opening it. Powered by 1500mAh battery, with auto sleep & auto awake function. Easy to operate & maintain. Compact, mini & lightweight, portable to carry. Widely applied in fields like restaurant, retail, logistic & etc for receipt, bill, ticket & so on printing.

Specification

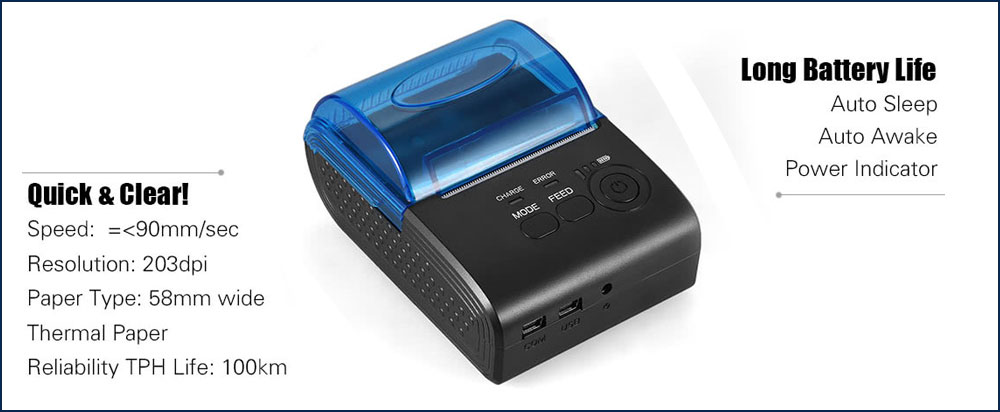

Model: POS-5805DD

Printing Method: Direct Thermal

Speed: =90mm/sec

Resolution: 203dpi(8dot/mm)

Paper Type: Thermal Paper

Paper Width: 58mm(+-0.1mm)

Printing Width: 40mm(384dot)

Roll Diameter: =<40mm

Reliability TPH Life: 100km

Bluetooth: 4.0 & 3.0

Character size: 384dots/line

Font A: 12 * 24dots, 1.5(W) * 3.0(H)mm

Font B: 9 *17dots, 1.1(W)* 2.1(H)mm

Simplified/Traditional: 24 * 24dots, 3.0(W)*3.0(H)

Extended Character: OEM437 / Katakana / OEM850 / OEM860 / OEM863 / OEM865 / West Europe / Greek / Hebrew / East Europe / Iran / WPC1252 OEM866 / OEM852 / OEM858 / Iran II / Latvian / Arabic / PT151, 1251 / OEM747 / WPC1257 / Vietnam / OEM864 / Hebrew / WPC1255 / Thai

Print Parameters: Support to download trademark, support bar-code print.

Support Bar Code Type: UPC-A/UPC-E/JAN13(EAN13) / JAN8(EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128;

Two-Dimensional Cord: QR Code

Emulation: ESC/POS/STAR Command

Interface: USB/COM/Power Port

Driver: For Win2003 / Win2000 / Win7 / WinXP / VISTA / Win8 / Win10 / LINUX

Battery: 7.4V 1500mAh 11.1Wh

Plug: EU/US/UK（optional）

Voltage: 100 ~ 240V 50/60Hz 0.5A Max.

Item Size: 10.7 * 7.5 * 5cm / 4.2 * 3.0 * 2.0in

Item Weight: 193.5g / 6.8oz

Package Size: 17.8 * 11.4 * 6.2cm / 7 * 4.5 * 2.4in

Package Weight: 427.5g / 15.1oz

Connect Smart Phone Via Bluetooth
For ios/ Android/ Windows OS
